How much is a corrugated cardboard sheet?

A double wall BB-flute layer pad of 850 × 560mm is RM2. A double wall 5mm sheet is RM13 at 1220 × 1220mm and RM25 at 2440 × 1220mm. Honeycomb board, 10mm thick and 2440 × 1220mm, is RM45. All are priced per sheet at Quinocycle in Balakong.

What is a layer pad used for?

A layer pad is a flat corrugated sheet placed between layers of goods on a pallet. It spreads the weight, keeps layers from shifting and protects the product underneath. The 1220 × 1220mm sheet covers a full pallet layer; the 850 × 560mm pad separates cartons or products inside a larger pack.

Which is stronger, double wall cardboard or honeycomb board?

Double wall cardboard is 4mm or 5mm thick and works well as a separator, cover or partition. Honeycomb board is 10mm thick with a core of hexagonal paper cells between two kraft liners, so it stays flat under load. Use honeycomb for pallet decks, case walls and heavy stacking.

Can I buy one sheet, and can it be cut to size?

Sheets are sold singly, so one is fine. The listed sizes are standard; corrugated board can be cut with a utility knife on site. For sheets, pads or edge protectors made to your own dimensions in volume, ask for a custom-made quote on WhatsApp +6016-891 6381.

How are large cardboard sheets delivered?

We deliver across Kuala Lumpur and Selangor with our own lorry on the next working day: free for orders of RM300 and above, RM30 flat per trip below that. Other states go by courier, quoted on request, and self-collection at our Balakong warehouse is free.

Corrugated Cardboard Sheet & Layer Pad

Quinocycle Sdn Bhd sells corrugated cardboard sheets and layer pads in Malaysia from RM2 a sheet from its warehouse in Balakong, Selangor, and delivers across Kuala Lumpur and Selangor by its own lorry on the next working day — free for orders of RM300 and above. Sheets come in 850 × 560mm, 1220 × 1220mm (4 × 4 ft) and 2440 × 1220mm (4 × 8 ft).

The same range holds what goes around a palletised load: paper edge protectors, 10mm honeycomb board and single-face corrugated paper rolls 1.3 m wide. All of it is paper, so it is recycled with the rest of your carton waste.

8 products

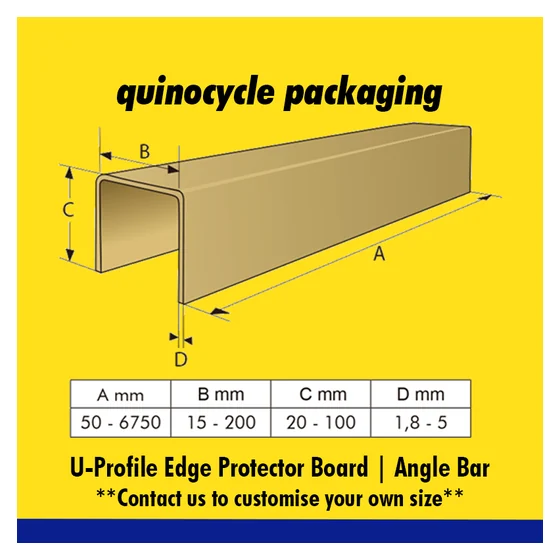

U-Profile Edge Protector Board | Angle Bar (Customisable)

Paper U-profile edge protector made to order. The U shape wraps over the edge of a panel, covering both faces and the edge itself, where an L-shape angle bar covers only a corner. Sizes are set per order within these ranges: length 50 to 6750mm, side B 15 to 200mm, side C 20 to 100mm and thickness 2 to 5mm. Door, glass, panel and furniture makers fit it along edges before shipping, and exporters use it on sheet materials. The minimum order is 2000 meters per production run, and it is sold by quotation through the enquiry form on the product page.

RM1.00

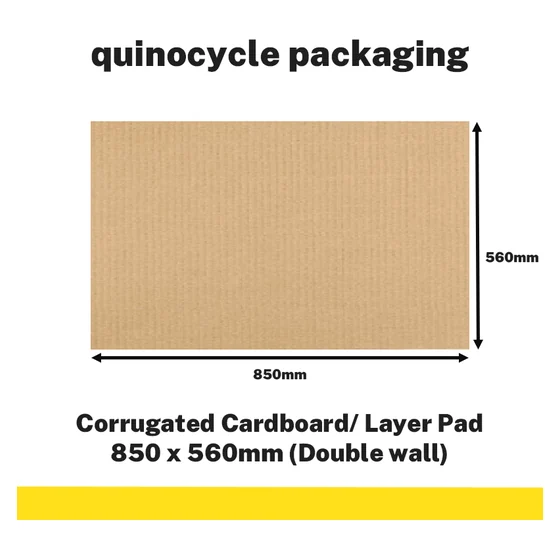

Corrugated Cardboard (Layer Pad) Double Wall BB-Flute 4mm |

850 × 560mm

RM2.00

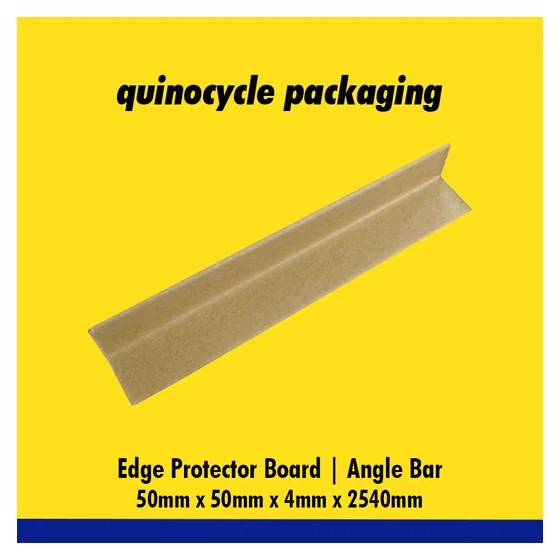

Edge Protector Board | Angle Bar 50mm x 50mm x 4mm x 2540mm

L-shape paper edge protector (angle bar) made from kraftliner paper, 50mm x 50mm on each side, 4mm thick and 2540mm long. It sits on the corners of a pallet load so that strapping and stretch film press on the board and not on the cartons. Warehouses use it on vertical pallet corners and top edges, furniture and door suppliers tape it along edges, and movers cut it to length for table tops and frames. A single piece is RM8.00. A bundle of 20 is RM140.00 (RM7.00 each) and a wholesale pack of 100 is RM500.00 (RM5.00 each).

RM8.00

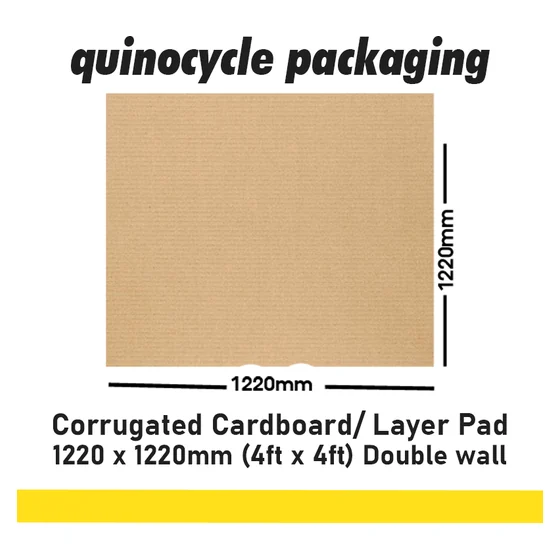

Corrugated Cardboard (Layer Pad) Double Wall 5mm |

1220 × 1220mm

RM13.00

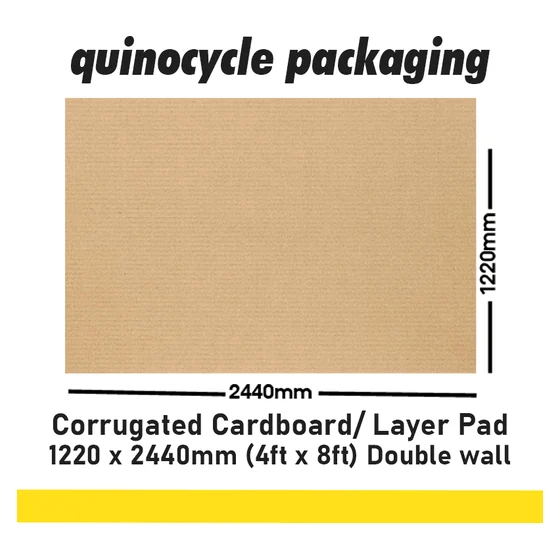

Corrugated Cardboard (Layer Pad) Double Wall 5mm |

2440 × 1220mm

RM25.00

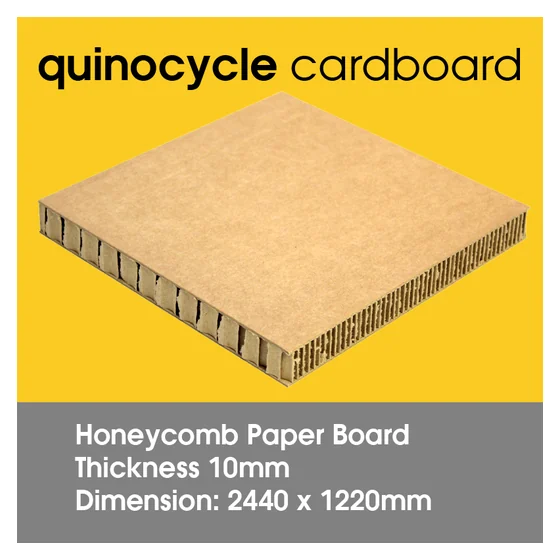

Lightweight Paper Honeycomb Cardboard (Thickness: 10mm)

2440 × 1220mm

RM45.00

Lightweight Paper Honeycomb Cardboard (Thickness: 20mm)

2440 × 1220mm

RM55.00

Single Face Corrugated Paper Roll 25KG (1.3 meter Width)

Single face corrugated paper roll, 1.3 meter wide and 25kg per roll, with a flat liner on one side and exposed B-flute on the other, 2mm thick. Because it bends in one direction it wraps around curved and long items that a flat sheet cannot cover. Furniture sellers and movers wrap cabinets, wardrobes, table tops and glass with it, renovators roll it out as floor covering, and warehouses use it as interleaving between stacked goods. One roll is RM120.00. A pallet of 5 rolls is RM525.00, which is RM105.00 a roll.

RM120.00

Which board for which job

Choose by the size of the surface you need to cover and by how much weight sits on it.

Layer pad 850 × 560mm, double wall BB-flute 4mm, RM2 — a separator between layers of cartons or product, and a handy size for craft.
Sheet 1220 × 1220mm (4 × 4 ft), double wall 5mm, RM13 — a pallet layer pad, a pallet top cover or a partition.
Sheet 2440 × 1220mm (4 × 8 ft), double wall 5mm, RM25 — floor and wall protection, large partitions and DIY work.
Honeycomb board 2440 × 1220mm, 10mm thick, RM45 — a stiff, light panel for pallet decks, case walls and void fill around heavy items.

Edge protectors and single-face rolls

The L-shape paper edge protector is 50 × 50mm, 4mm thick and 2,540mm long. It guards the corners of a palletised load from strapping and knocks. One piece is RM8, a bundle of 20 is RM140 and 100 pieces are RM500. U-profile edge protectors are made to your dimensions, with a minimum run of 2,000 m, and are quoted on request.

A single-face corrugated paper roll has a flat liner on one side and exposed flutes on the other, so it wraps around furniture, table tops and glass without marking the finish. A 25 kg roll, 1.3 m wide, is RM120, or RM525 for a pallet of 5 rolls.

Frequently asked questions

How much is a corrugated cardboard sheet?: A double wall BB-flute layer pad of 850 × 560mm is RM2. A double wall 5mm sheet is RM13 at 1220 × 1220mm and RM25 at 2440 × 1220mm. Honeycomb board, 10mm thick and 2440 × 1220mm, is RM45. All are priced per sheet at Quinocycle in Balakong.
What is a layer pad used for?: A layer pad is a flat corrugated sheet placed between layers of goods on a pallet. It spreads the weight, keeps layers from shifting and protects the product underneath. The 1220 × 1220mm sheet covers a full pallet layer; the 850 × 560mm pad separates cartons or products inside a larger pack.
Which is stronger, double wall cardboard or honeycomb board?: Double wall cardboard is 4mm or 5mm thick and works well as a separator, cover or partition. Honeycomb board is 10mm thick with a core of hexagonal paper cells between two kraft liners, so it stays flat under load. Use honeycomb for pallet decks, case walls and heavy stacking.
Can I buy one sheet, and can it be cut to size?: Sheets are sold singly, so one is fine. The listed sizes are standard; corrugated board can be cut with a utility knife on site. For sheets, pads or edge protectors made to your own dimensions in volume, ask for a custom-made quote on WhatsApp +6016-891 6381.
How are large cardboard sheets delivered?: We deliver across Kuala Lumpur and Selangor with our own lorry on the next working day: free for orders of RM300 and above, RM30 flat per trip below that. Other states go by courier, quoted on request, and self-collection at our Balakong warehouse is free.
